MICROSTAR

C2000

Single Phase / Two Phase Smart Meter

Class 1.0

IEC 62053-21, IEC 62052-11, EN 50470

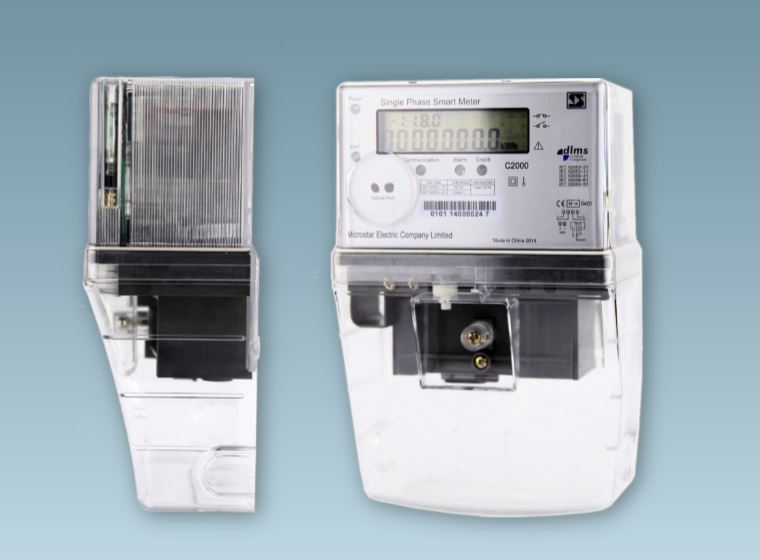

C2000 Single Phase Smart Meter

Features

High accuracy measurement of bi-directional energy and demand
Instrumentation of voltage, current, power, power factor, and frequency
Configurable load profiles with 180 days capacity at 60' interval (optional)
Remote load control with up-to 100A internal contactor (optional)
Internal real-time clock with super-capacitor or lithium battery backup
Encapsulation type meter casing for superior reliability and security
Supports DLMS/COSEM, IEC62056-21, or MODBUS protocol
AMI/AMR ready with hot-pluggable communication module

Specifications

Connection Type: 1 Phase 2 Wire/2 Phase 3 Wire
Accuracy Class: Class 1.0
Rated Voltage: 110V, 220V, 230V, or 240V
Rated Current: 5 (60)A, 5 (80)A, 5 (100)A
Dimensions: 209mm x 137mm x 83mm
Weight: 1.0 kg (approximately)
Insulation: Protective Class II
Ingress Protection: IP54

LCD: Two line 8 with power-off display
Display Items: 100 configurable items
Real-time Clock: < 0.5s / 24 hours
Anti-Tampering: Cover open detection w/ event alarms
Local Communication: Optical, RS485, RF, PLC
Remote Communication: GPRS/3G/4G, Wi-Fi, Ethernet
Load Control: Up-to 100A internal contactor (optional)
Prepayment: STS compliant prepayment features (optional)
